Sagittario Linear Optics: efficiency over 95% and length up to 6 meters

1 June 2023

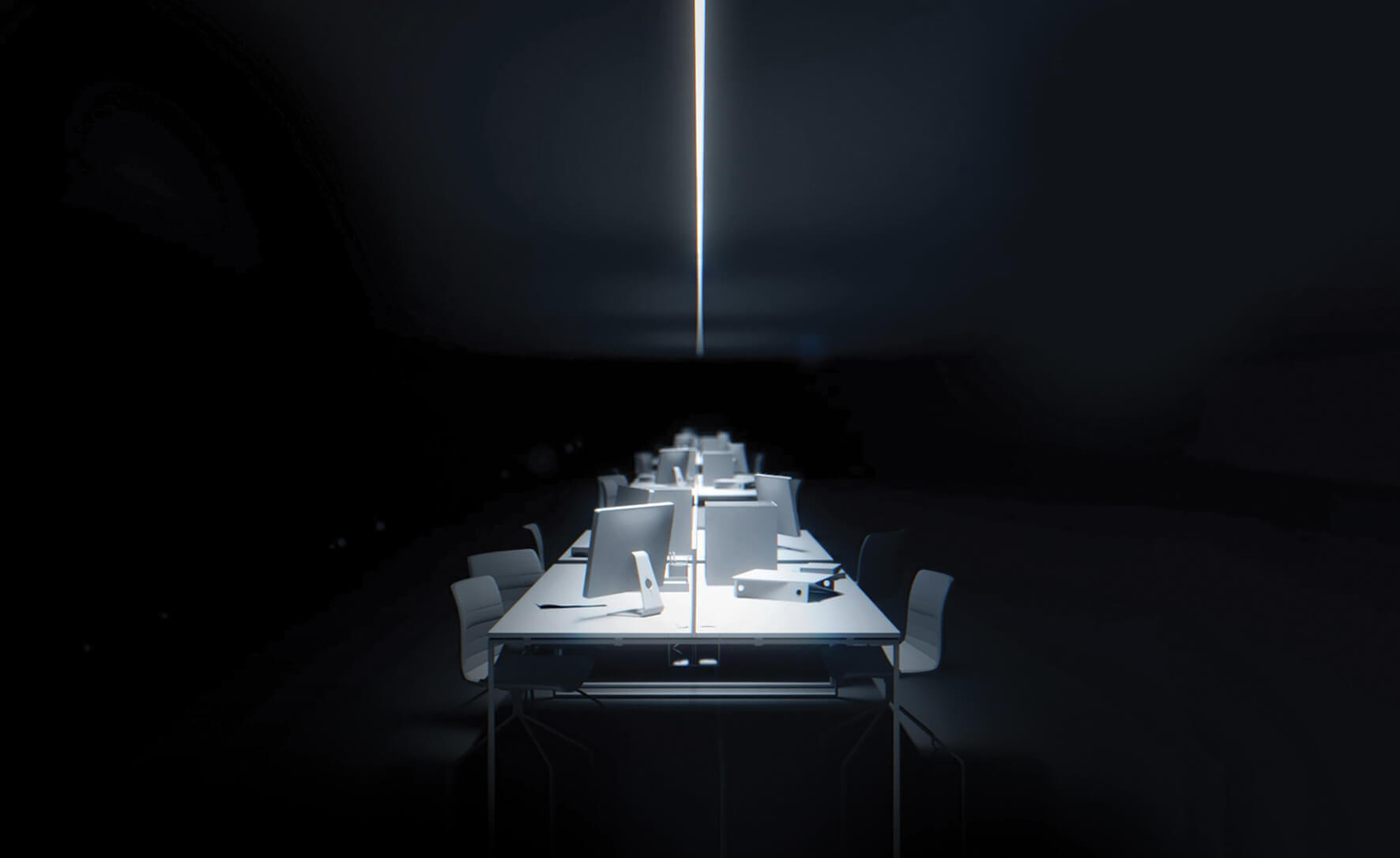

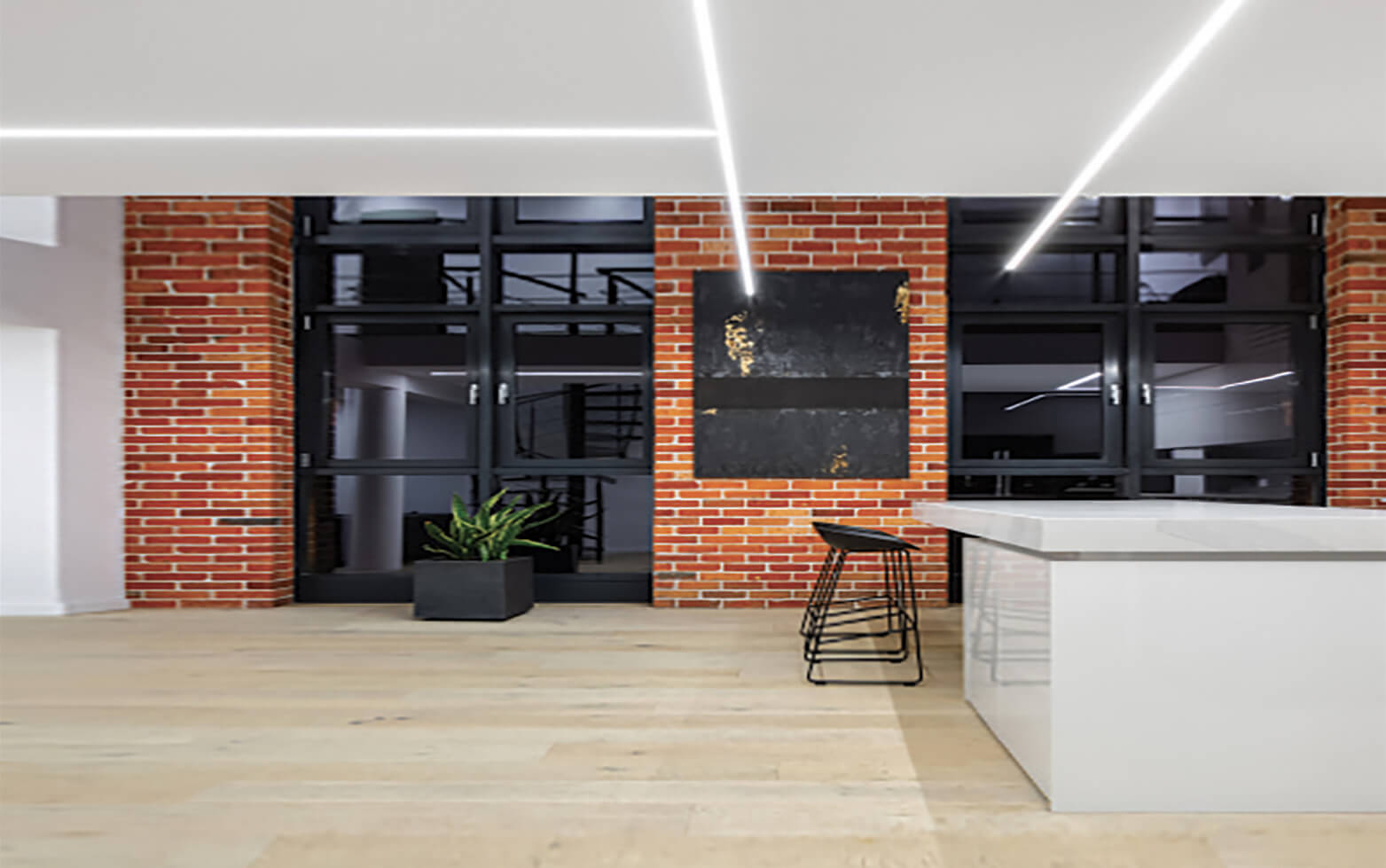

Exclusively designed for offices and retail applications

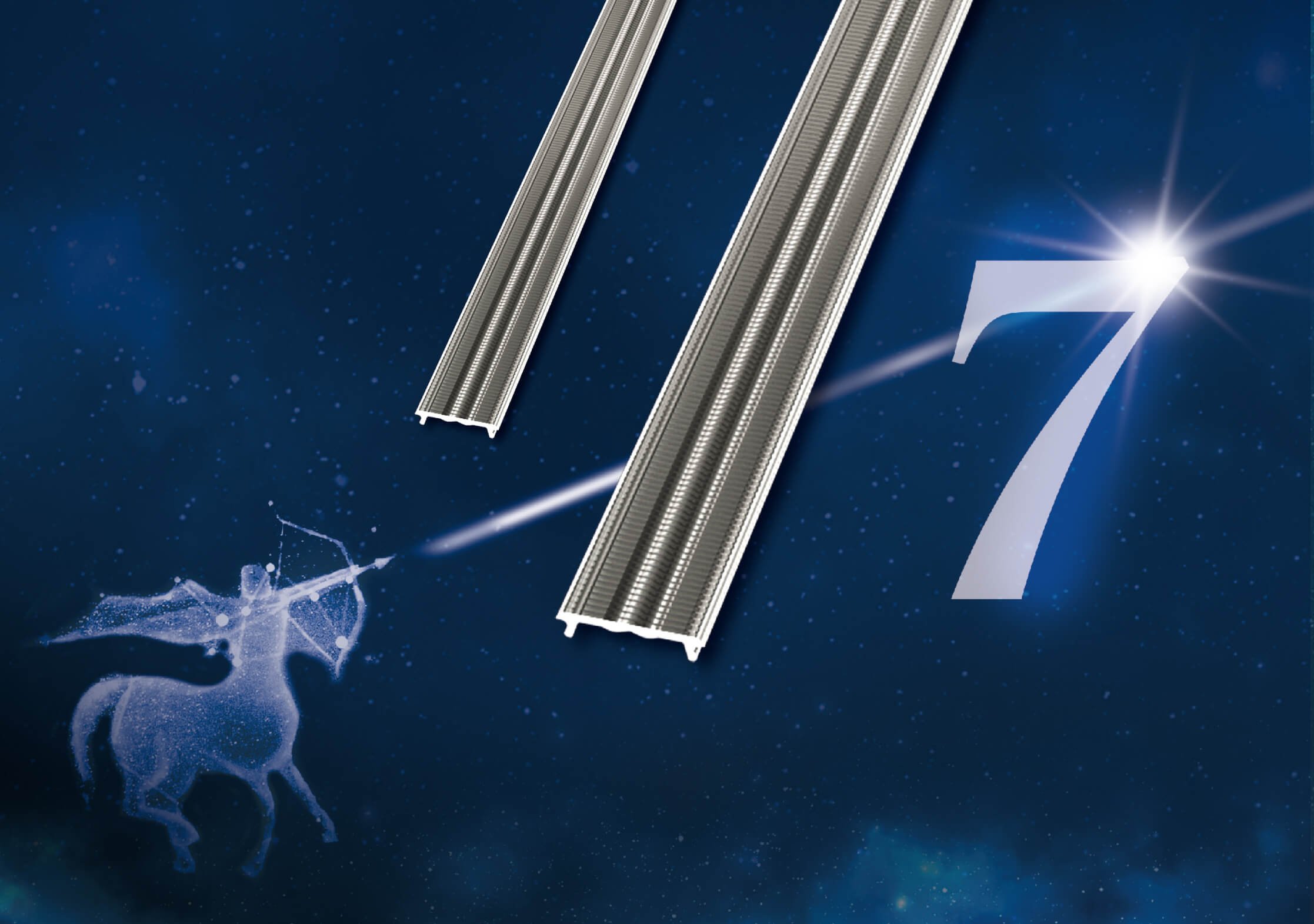

SAGITTARIO is the new family of linear optics, made by Khatod: ideal for all indoor environments, like supermarkets, warehouses and offices.

Thanks to the incredible success that Khatod has achieved in the market with the innovative Technology called OMP™ (Optical Multilayer Performance), it is proud to present you 7 new beams. The OMP™ (Optical Multilayer Performance) Technology is an innovative production method that combines different optical layers in one piece, to achieve highest efficiencies, reduces color-over-angle and optimizes distribution.

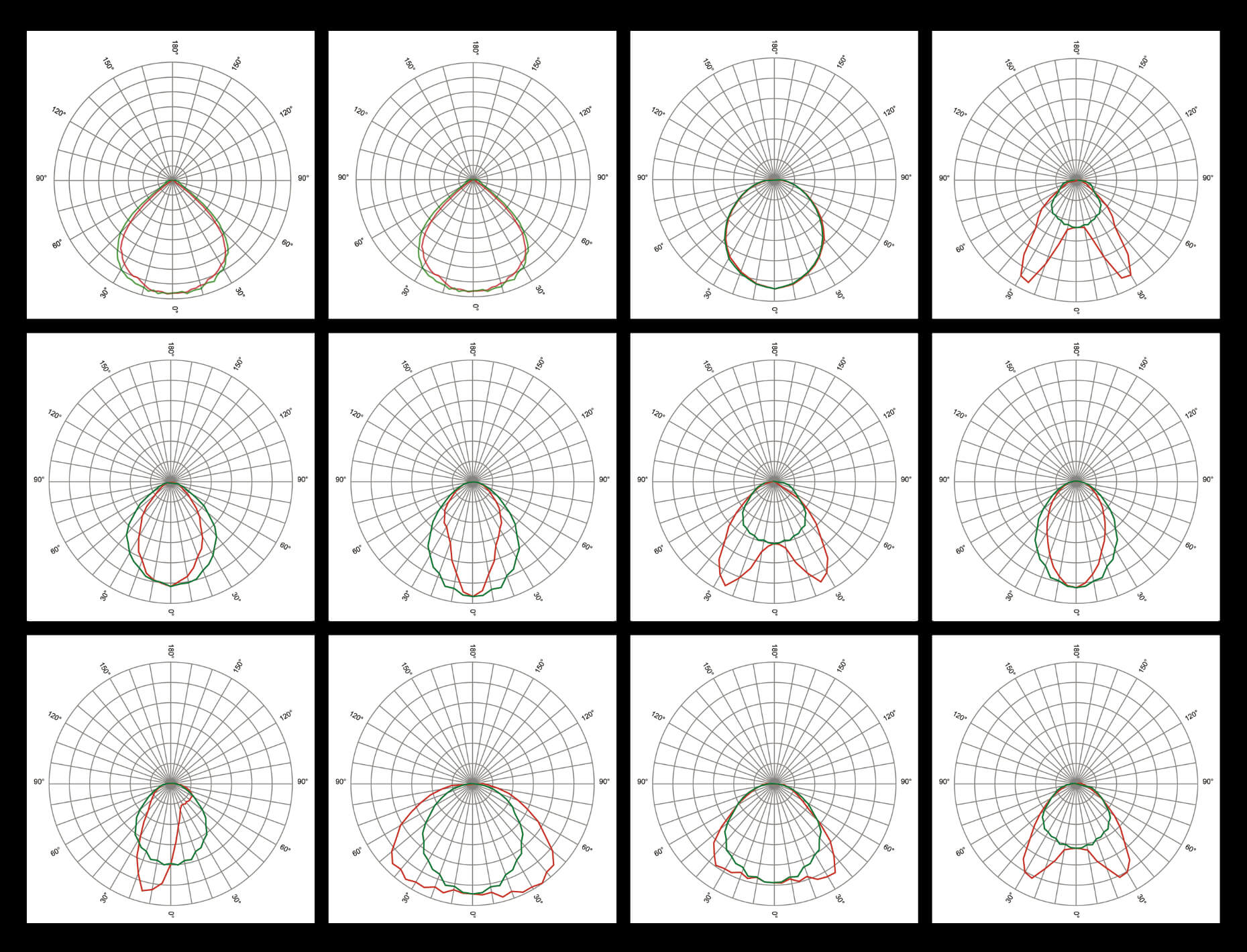

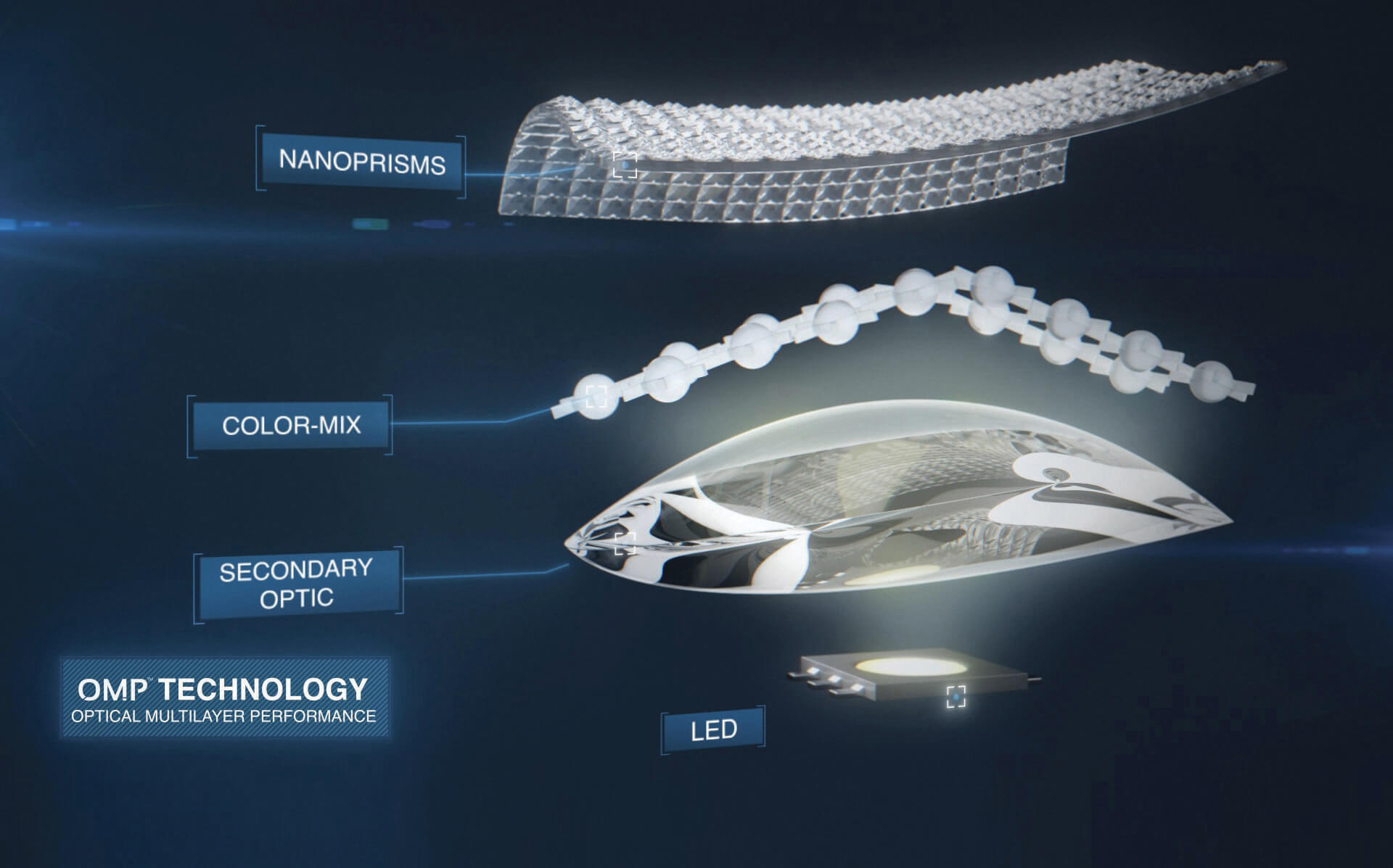

Light enters a first secondary optic and passes through a layer of color-mixing nanostructures, before leaving SAGITTARIO through an additional layer of nanoprisms. They are available in various Beam Angle Types: Double Asymmetric, Single Asymmetric, 140°, 120°, 110°, 70°, 90° Uniform, 60° Low Glare and 45°. Efficiencies exceed 95%, with uniformities of 0.9. It is available in any lengths, thanks to a new cold-forming technology – ideal to cover large spaces.

The whole line-up revolves around one core feature: energy savings. The optical efficiency is tailored on the applications and takes into account not only lumen/Watt, but also Lux/€. Optimized for 2835 and 3030 LEDs series, in 20 mm and 24 mm modules. Made of optical grade PMMA, these optics work perfectly within -40° to +90° temperature range.

Mechanical snap-in function allows assembly without screws.

On request, the lens length is customizable.
