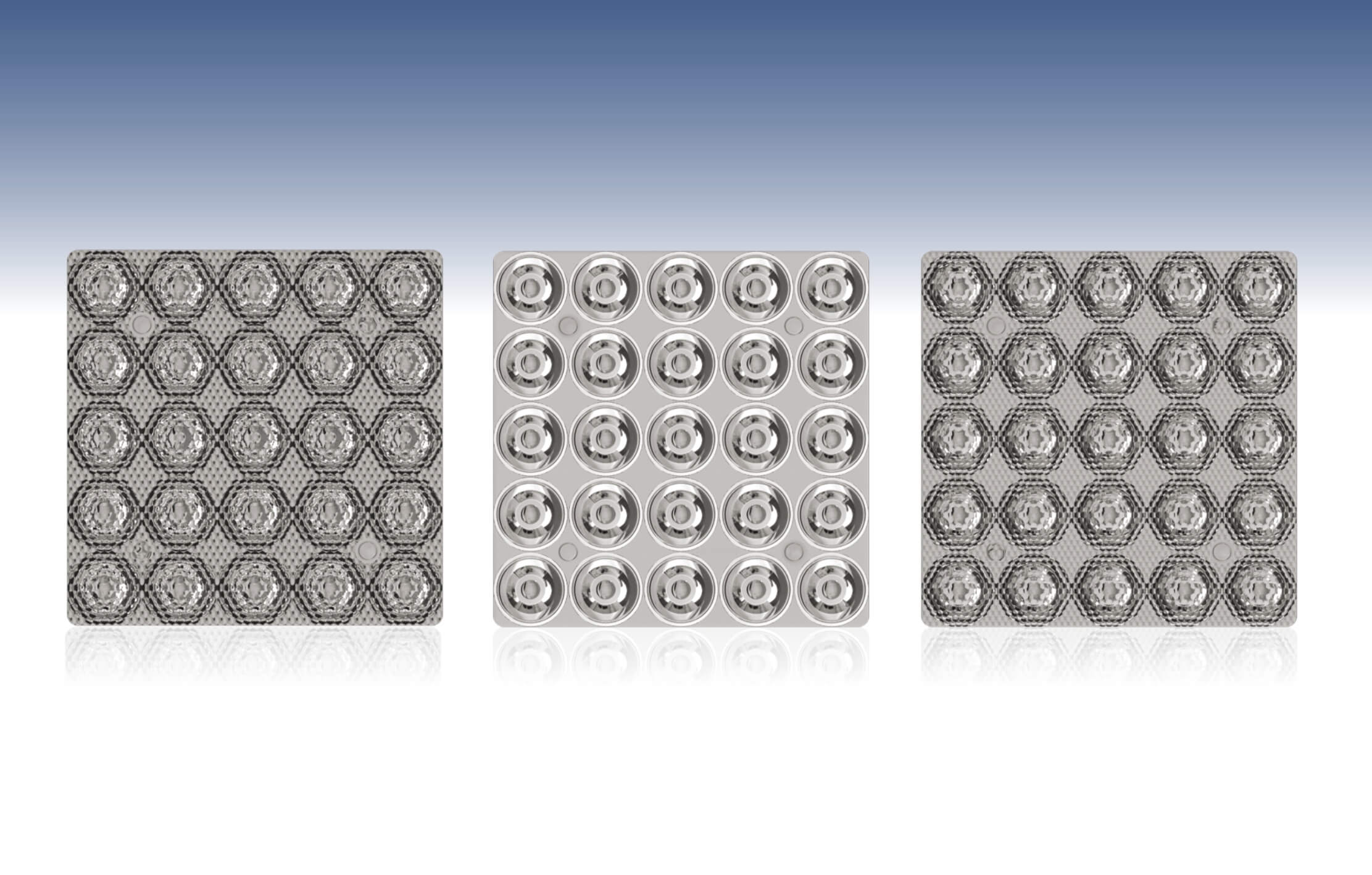

SQUARE (PLL2251xx) by Khatod is the new family of multi-lens modules for indoor lighting fixtures. Available in several square-shaped models – 74.9 mm x 74.9 mm – SQUARE is a cluster composed of an array of 25 lenses having beams ranging from 11° to 40° and an elliptical beam.
Made of PMMA, the lenses work perfectly in a temperature range between -40°C and +85°C and are available in two fixing possibilities, using glue or screws. Optimized for the 3535 LED series, SQUARE multi-lenses offer high efficiency and excellent luminescent flux and are therefore fitting for applications where light uniformity is specifically required. They can be used individually or configured in multiple clusters to create a unique and perfect lighting device for each application, such as linear lighting arrays. The device can be equipped with LED in format 3535 with or without a dome.
In addition to the classic applications in white or RGBW light, SQUARE by Khatod uses both warm and cold light sources to obtain an outstanding “Tunable White” effect or different frequencies (Multicolor) to achieve the ideal chromatic balance.
